The last couple of days has been crazy. We have been frantically working to get the project finish. right now, t minus 1.5 hours, I'm waiting on UPS to deliver the last set of servos so we can finish wall. So While I wait here are some pictures of our final assembly

Alex cutting the frame

Derek putting on the hardboard

The basic Modules done. It come apart into 4 pieces so we move it to the jury room

Derek working on the screen

The wall moved to the jury room

The mess of wiring

The LED Bar thats inside of each panel, 16 3 Watt LEDs

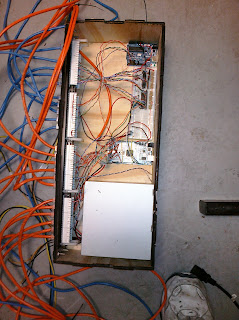

A closer look at the receiver box- two arduino communicating over serial

A look at the servo inside the wall.

Ah, the UPS guy! Back to school with the servos!
